Astrill Setup Manual:How to configure OpenVPN with Network Manager on Linux

From Astrill Wiki
Jump to navigation Jump to search

Step 1

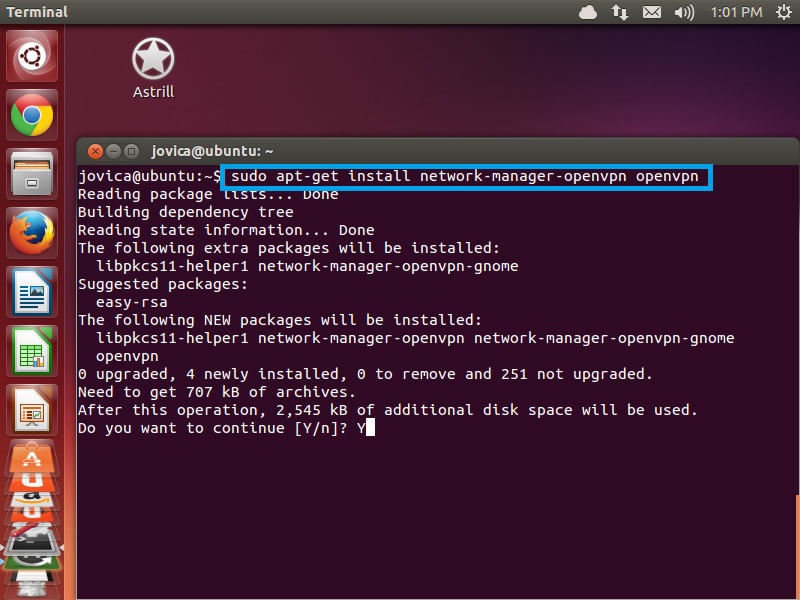

First open Terminal, and use this command to install the OpenVPN Network Manager plugin:

sudo apt-get install network-manager-openvpn openvpn

N.linux ovpnnet1.jpg

Step 2

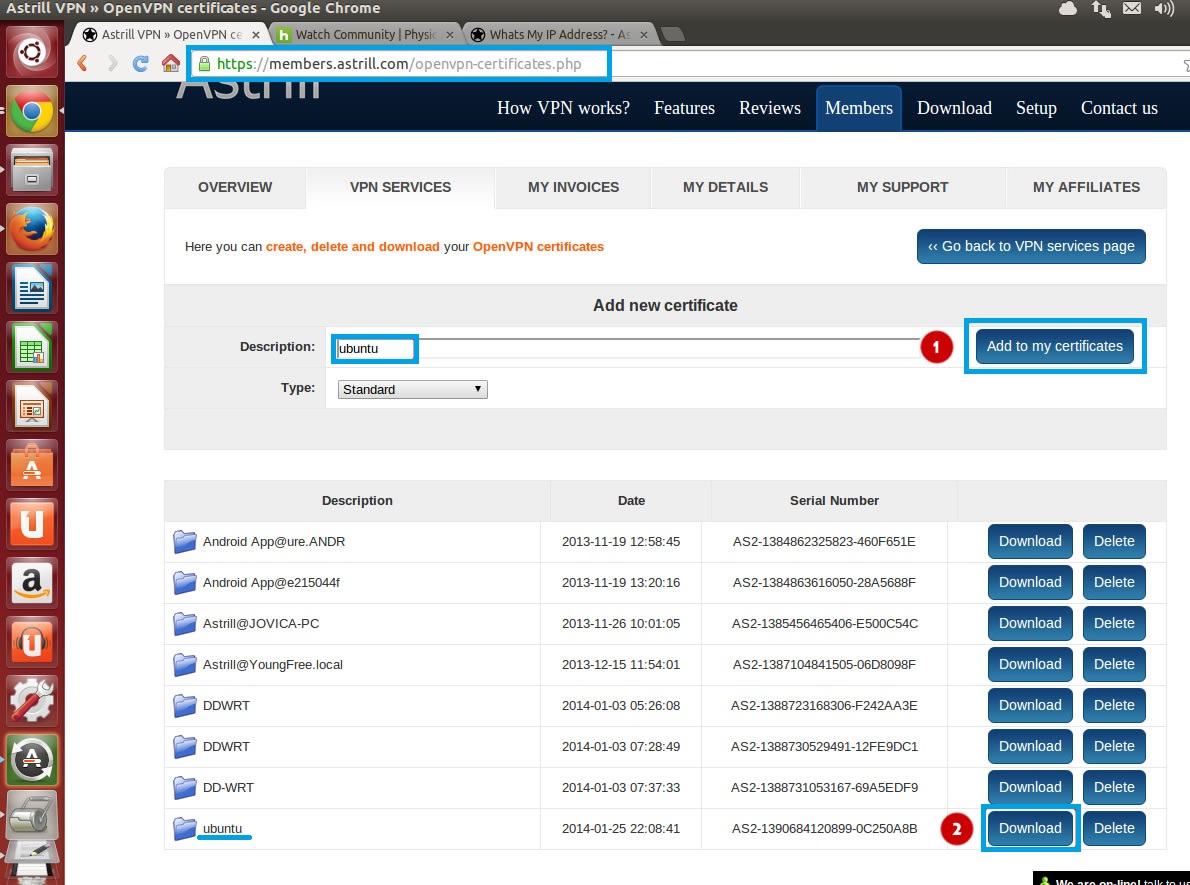

Login to Members area, and create and download a certificate for OpenVPN with configuration files. Click on Members, login to your account, then click VPN Services, and then click on OpenVPN certificates generation.

N.linux ovpnnet2.jpg

Step 3

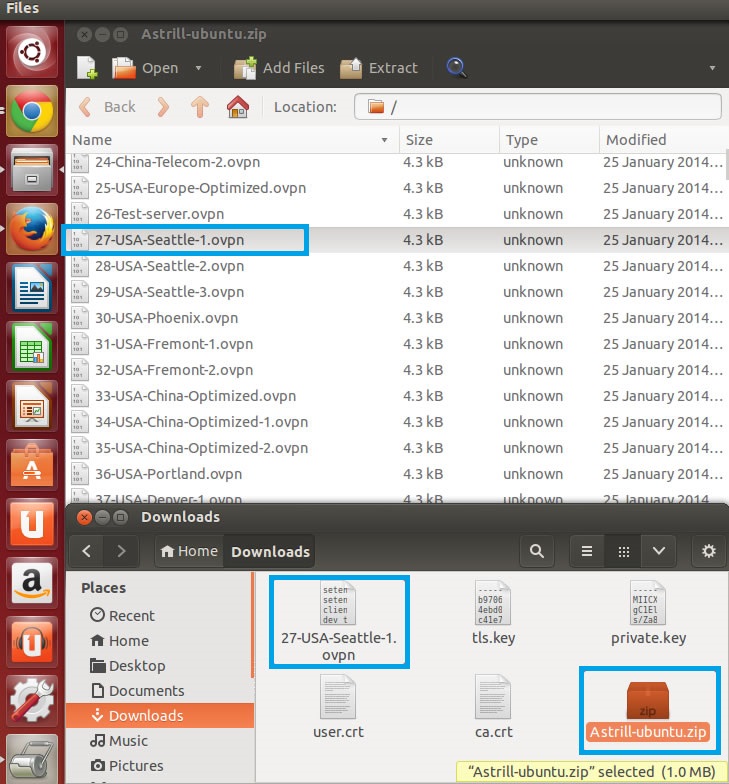

Open file you just downloaded, and pick a server and extract the OVPN file (in this example 27-USA-Seattle-1.ovpn).

N.linux ovpnnet3.1.jpg

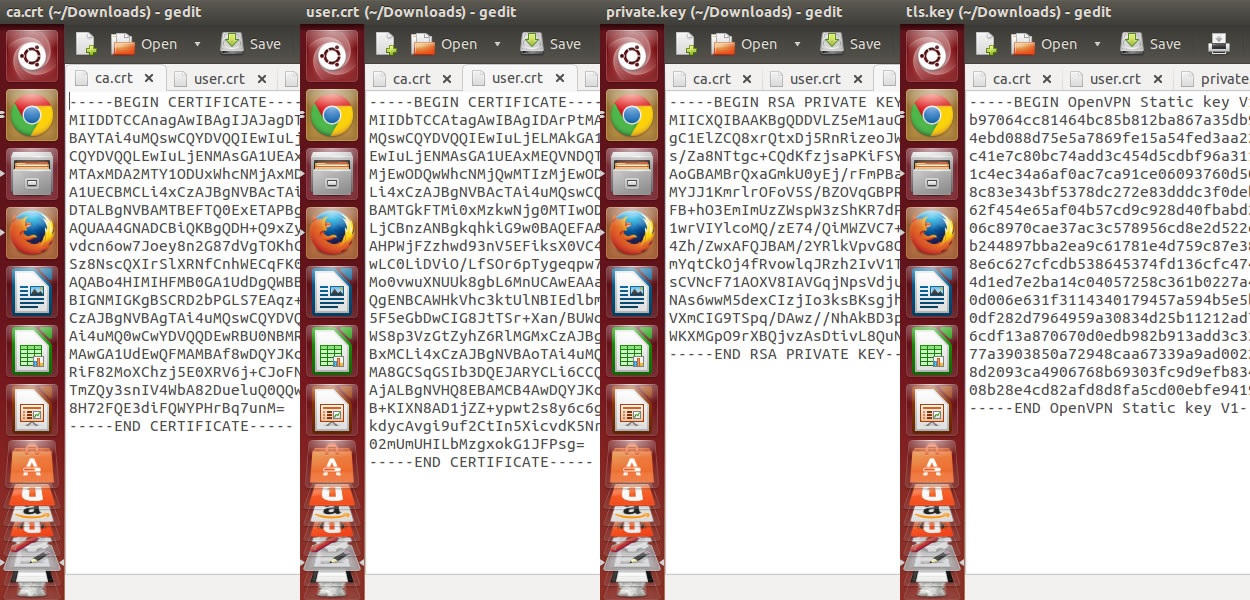

Then make 4 copies of 27-USA-Seattle-1.ovpn file, and rename them and edit them accordingly:

Text between <ca></ca> tags goes into ca.crt file

Text between <cert></cert> tags goes into user.crt file

Text between <key></key> tags goes into private.key file

Text between <tls-auth></tls-auth> tags goes into tls.key file

N.linux ovpnnet3.2.jpg

Step 4

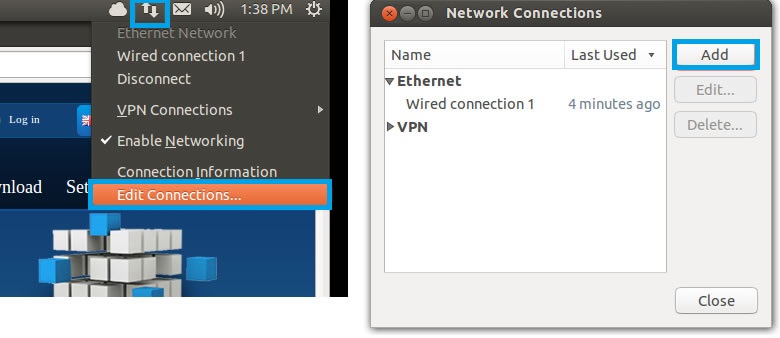

Open Network Manager, and then click on Add button to create new connection.

N.linux ovpnnet4.1.jpg

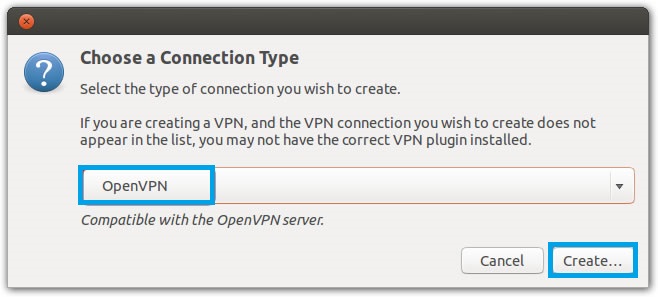

Select OpenVPN for connection type, and then click on Create... button to create new OpenVPN connection.

N.linux ovpnnet4.2.jpg

Step 5

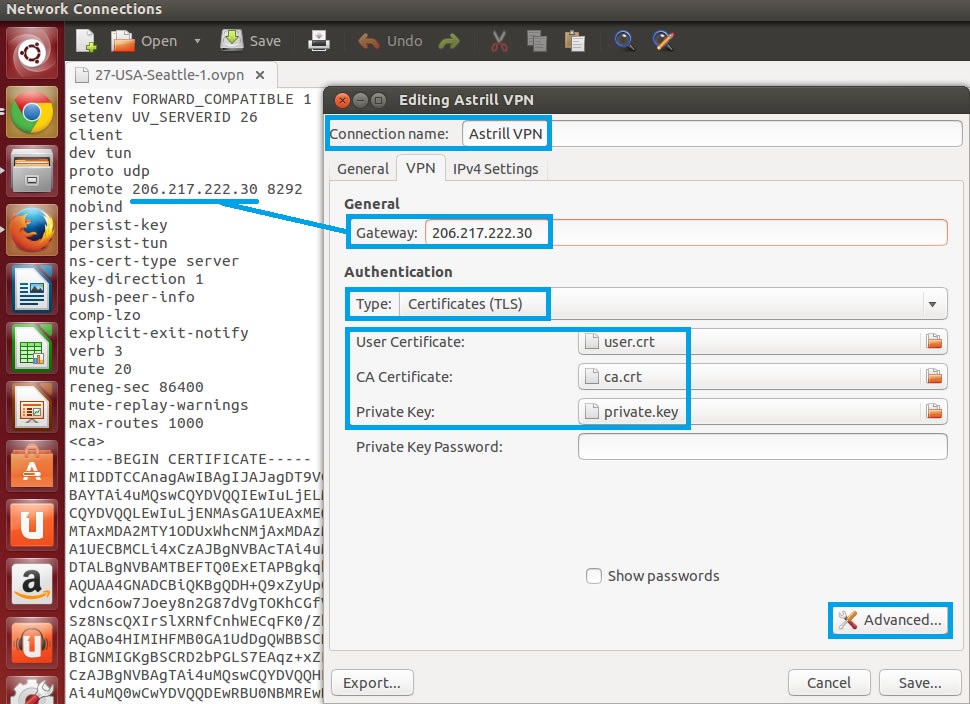

On VPN tab, you need to set the following:

Connection name: Astrill VPN

Gateway: <VPN Server IP address>

Authentication Type: Certificates (TLS)

User Certificate: user.crt

CA Certificate: ca.crt

Private Key: private.key

Then click on Advanced... button for more configuration options.

N.linux ovpnnet5.1.jpg

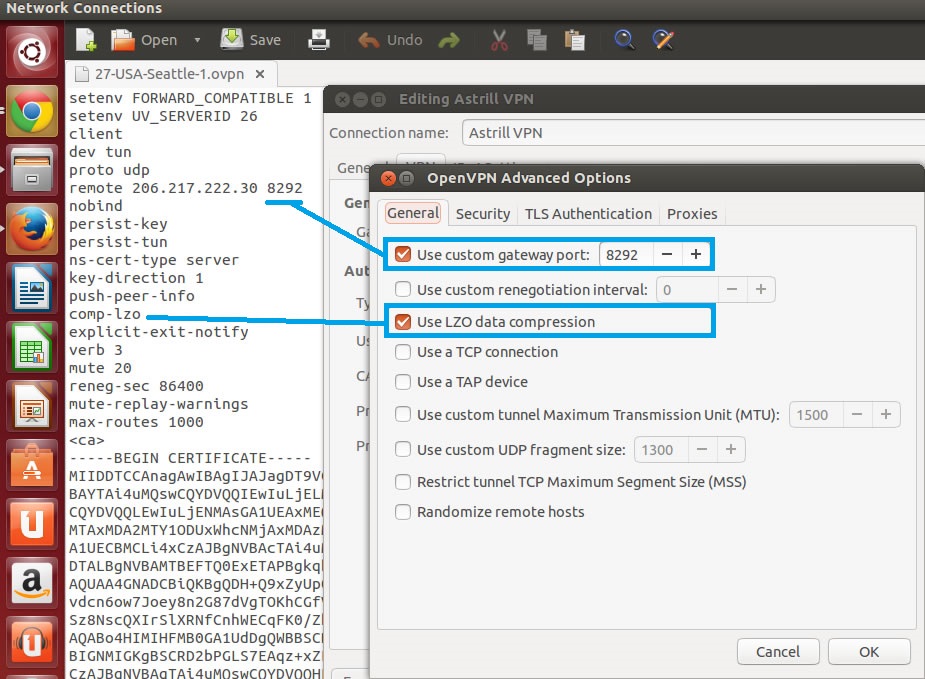

On General tab, you need to set the following:

Use custom gateway port: tick and set 8292

Use LZO data compression: tick

N.linux ovpnnet5.2.jpg

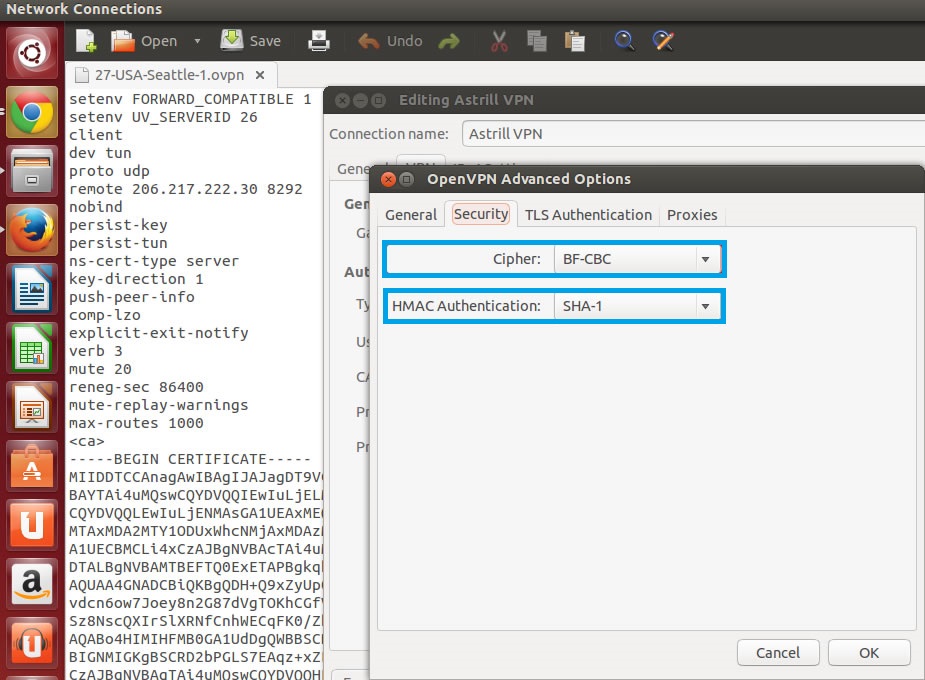

On Security tab, you need to set the following:

Cipher: BF-CBC

HMAC Authentication: SHA-1

N.linux ovpnnet5.3.jpg

On TLS Authentication tab, you need to set the following:

Use additional TSL authentication: ticked

Key File: tls.key

Key Direction: 1

File:N.linux ovpnnet5.4.jpg

Once done, click on OK button and then click on Save button.

Step 6

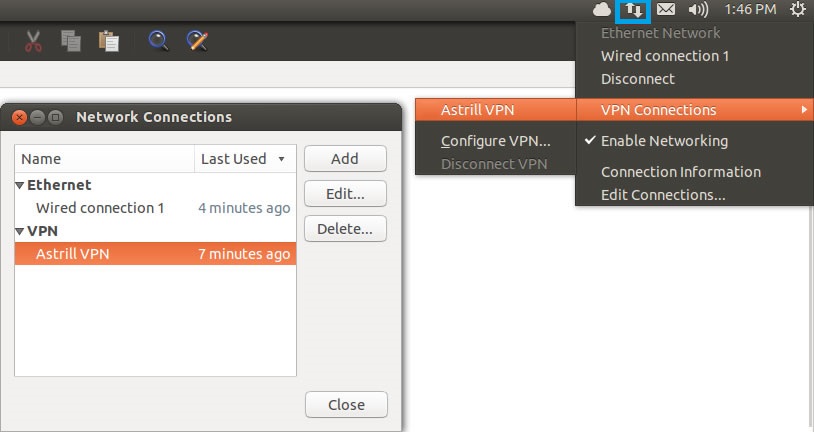

Now we are ready to start Astrill OpenVPN connection.

N.linux ovpnnet6.1.jpg

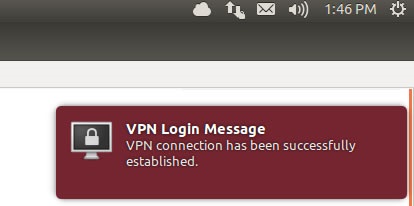

Once OpenVPN connection is established you will see successful pop-up message.

N.linux ovpnnet6.2.jpg

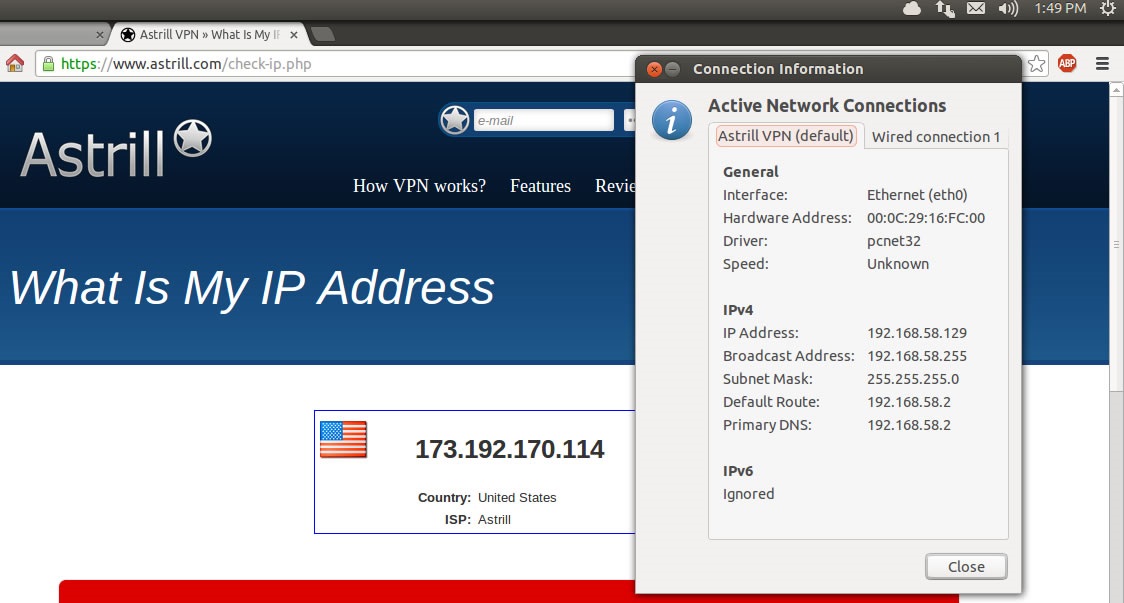

You can check and confirm your IP address.

N.linux ovpnnet6.3.jpg
